32X Direct Connect Retrofit

NOTE: This system is designed to operate using a 1/2 hp pump motor, if motor plate reads 1/3 change to 1/2 hp pump motor.

1. Disconnect power to fryer and allow it to cool.



2. Remove rear cover screws and rear cover from fryer.



NOTES: OFG unites have two covers, OFE unites have one cover. Figure 1 depicts an OFG unit.

3. Loosen the nuts on the 3/8" tubing. Remove and discard tubing.



4. Remove straight fittings and elbows from the top of the pump. Replace with new fittings from the kit.

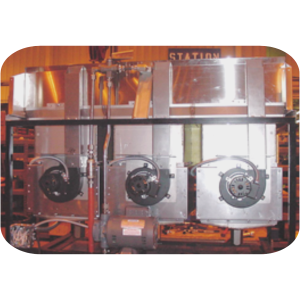

5. Attatch new tubing and hose assembles to fryer. Place 3/8" tube fittings on the return line block assemblies. Then tighten the 5/8" tube fittings onto the new pump.

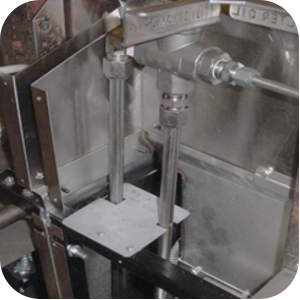

6. Install brackets by fastening screws into the black fryer frame.

7. Reinstall rear cover to fryer.



8. Install the male quick disconnect (21611) to manifold attached to the wall behind fryer.

9. Connect female end to male end of quick disconnect.
