OFE 32X Open Drain Switch Retrofit Kit

Kit number

14651

Estimated Time

1 - 1.5 hours

Remove electrical power supplied to the unit.

To avoid personal injury or property damage, before starting this procedure, move the main power switch to the off position. Disconnect the main circuit breakers at the circuit breaker box or unplug service cord from wall receptacle. Turn off the main gas supply to the fryer and disconnect and cap the main supply line to fryer, or possible explosion could result.

Drain oil from vat, ensure drains are in the closed position.
Open doors to access filter pan.

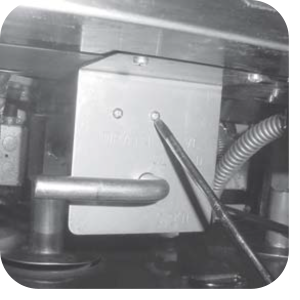

Use a crosstip screwdriver to remove the screws and nuts securing the drain.
Disconnect the wires to the drain switch and discard the switch.

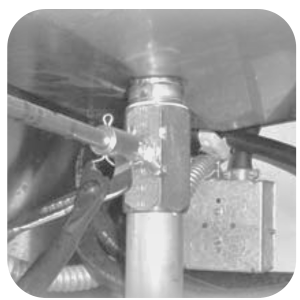

Use a pair of pliers or channel locks to remove the cotter pin that is securing the drain rod handle to the drain valve coupling.

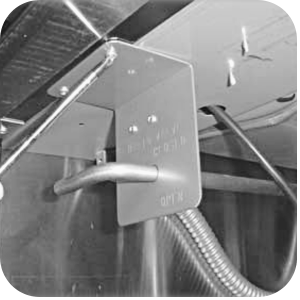

Pull drain rod handle from bracket and discard.
Use a crosstip screwdriver to remove and discard the "NORM CLOSED" screw from the drain switch provided in the kit.
Connect wires to the drain switch and mount behind the drain rod bracket. Screws and nuts are provided in the kit.
Insert drain rod through the drain rod bracket and into the valve coupling.
Push up on the plunger of the drain switch while inserting the drain rod handle, or damage to the switch could result.
Position handle so it is pointed to the left side of the unit with the drain valve closed. Secure with cotter pin from the kit. The plunger on the drain switch should be pressed by the drain rod when closed. When drain is open the notch in the drain rod will release and drain. A click should be heard when open.
