DIN Plug Replacement Wiring
Required tools
Flat-head screwdriver
Crosstip screwdriver
Kit number
169843
Estimated Time
20 minutes
-
Unscrew DIN plug from existing gas valve.
-

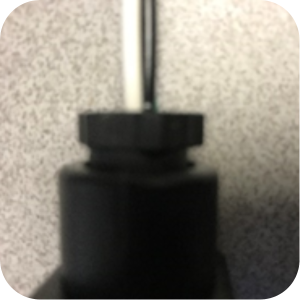

Loosen retaining nut on DIN plug.
-

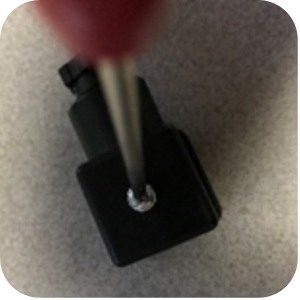

Remove screw in rear of connector.
-

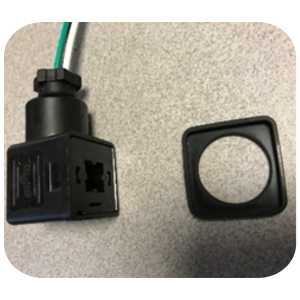

Remove gasket around receptacle.
-

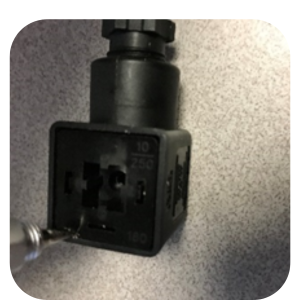

Turn plug around and use a crosstip screwdriver to remove receptacle.
-

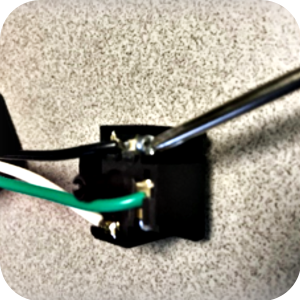

Use a crosstip screwdriver to remove wires from receptacle.
-

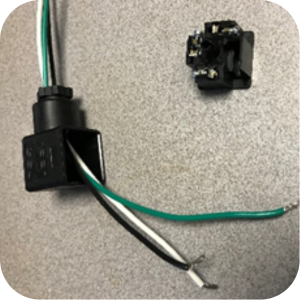

Pull wires through receptacle body.
-
Remove DIN plug from new safety valve supplied in kit.
-

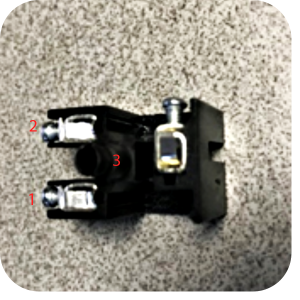

Insert black wire into bottom left.
-
Insert the white wire into the top left.
-
Insert the green wire into the ground and tighten the screws.
-
Attach wired DIN plug back on to new safety valve.
|
To avoid electrical shock or property damage, move the power switch to OFF and disconnect power. |
