OFX 32X RetroFit Faucet
Required tools
3/8 in Wrench
5/8 in Wrench
Crosstip Screwdriver
Flat-head Screwdriver
Kit number
14760
Estimated Time
1 Hour to 1.5 Hours
-
Disconnect power to fryer and allow it to cool.
-

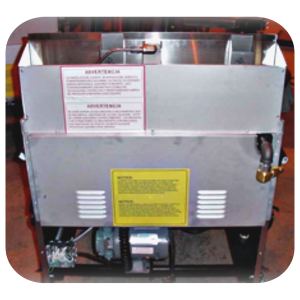

Remove rear cover screws and the cover from the unit.
NOTES: Save these items to be reused. OFG unites have two covers, OFE unites have one cover.
-

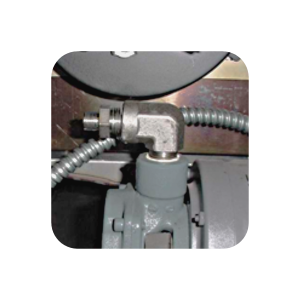

Loosen the nuts on the fittings of the 3/8 in. tubing. Remove the tubing from the fryer and discard.
-

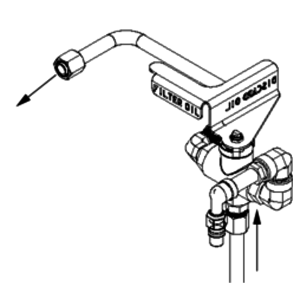

Attach 5/8" tubing assembly to the pump fitting. Attach other end to valve assembly.
-
Insert 5/8" tube into the block assembly on the fryer.
-
Attach 5/8" tube to the top of valve assembly. Ensure all nuts are tightened.
-

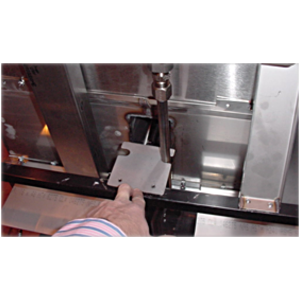

Install bracket from the kit to hold tubing in place. Fasten the two self-drilling bracket screws into the fryer frame.
-

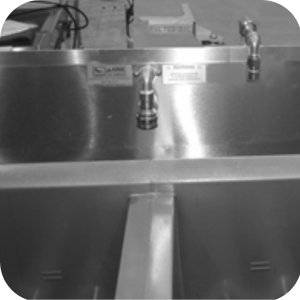

Final installation shown in figure 6.
