OFE 32X Conversion from Full Pan to Single Pan
Required tools
Electric Drill with Crosstip head
Crosstip screwdriver
Pipe Wrench
7/16 in. Socket
Ratchet
Sealant
1 in. Wrench
Kit number
140660
Estimated Time
30 minutes
|
To avoid electrical shock or property damage, move the power switch to OFF and disconnect power. |
-
Use a ross-tip screwdriver to remove left and right side panels.
-
Remove the existing filter pan from under the fryer.
-
Use a 1 in. wrench to remove the pick-up tube from the pump motor.
-

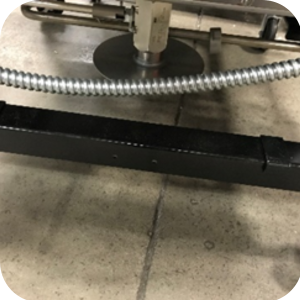

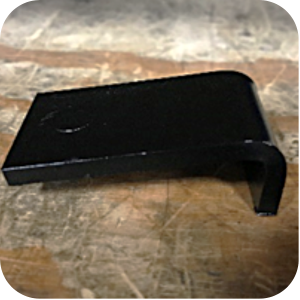

Locate the new stop blocks (4) included in the kit. Place them onto the two rails.
-
Align stop blocks up with holes in frame.
-

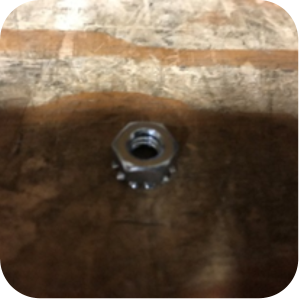

Locate the 1/4 20 nuts (4) form the kit. Attach the nuts to the bottom side of the rails onto the stop blocks using a 7/16 in. socket and tighten.
-

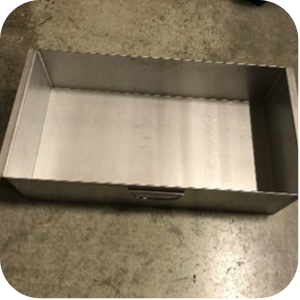

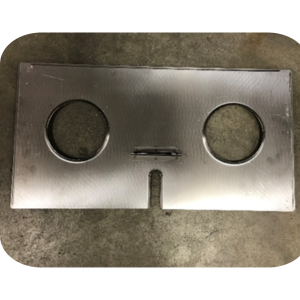

Locate the new filter pan and cover, place the cover onto the filter pan and slide on to the rails between the new stop blocks.
-

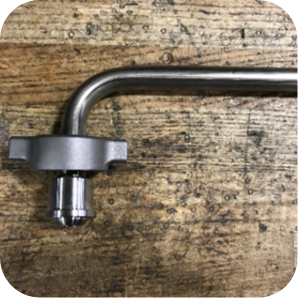

Install handle fitting union and male fitting SM inlet union onto the new pick-up located in the kit. Use pipe wrench to install unions onto the pick-up tube.
-
Install the new pick-up tube to pump motor using a 1 in. wrench.
-
Reinstall the side panels onto the unit.
-

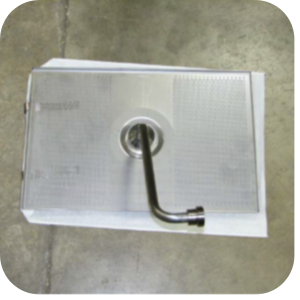

When installing the filter screen and pick-up tube, the pick-up tube will be oriented in a new position.
