OFE 32X Reinforcing the Basket Rest
Required tools
Large crosstip screwdriver
Small crosstip screwdriver
7/16 in Wrench
Silicone sealant
Kit number
140124 - SN: BA0604033 & After
140136 - Before SN: BA0604033
Estimated Time
30 minutes - 1 hour
-
Locate the crosstip screwdriver.
-

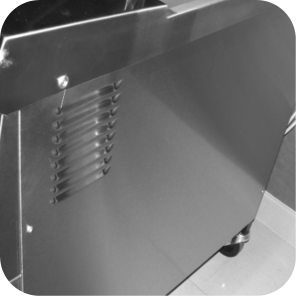

Use a crosstip screwdriver to remove screws securing control panel and drop down control panel.
-
Use a large crosstip screwdriver and 7/16 in wrench to remove bolts and nuts on both sides of the fryer.
-
Save nuts and bolts for later use. Some counter tops may have additional screws
-
Place replacement counter top over existing.
-

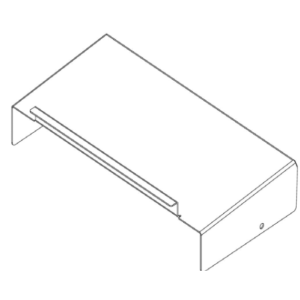

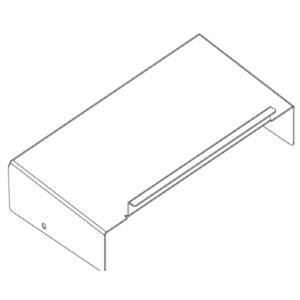

Seal the gaps towards the fryer with silicone sealant.
-
Secure replacement counter top with bolts & nuts
